Engineering

Items: EngineeringItems: Engineering

The engineering tab is a precursor to the new Design and Engineering (D&E) module currently under development. Here you can enter technical specifications about the item. These specifications will help your engineering staff understand how much power, how many rack spaces, what kind of cooling, and how many network outlets are needed for specific system designs.

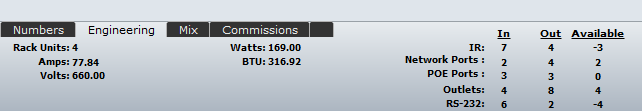

Currently, iPoint will calculate the total of all items on a proposal or sales order and display them in the Engineering tab at the bottom of the Designer.

Proposal Numbers tabProposal Numbers tab

The engineering fields available are:

  • Rack Units
  • Amps
  • Volts
  • Watts
  • BTU
  • Outlets In
  • IR Flashers In
  • RS-232 In
  • Height
  • Depth
  • Outlets Out
  • IR Flashers Out
  • RS-232 Out
  • Width
  • Weight
  • Network Ports In
  • 10 GB Ports In
  • AVB Ports In
  • POE Ports In
  • Throw Min x Max
  • Network Ports Out
  • 10 GB Ports Out
  • AVB Ports Out
  • POE Ports Out
  • D&E Inputs
  • D&E Outputs
  • Line Icon
  • Elevation Icon
  • Plan Icon
iPoint Version: 10.0903
Last modified: 10 Sep 2021
